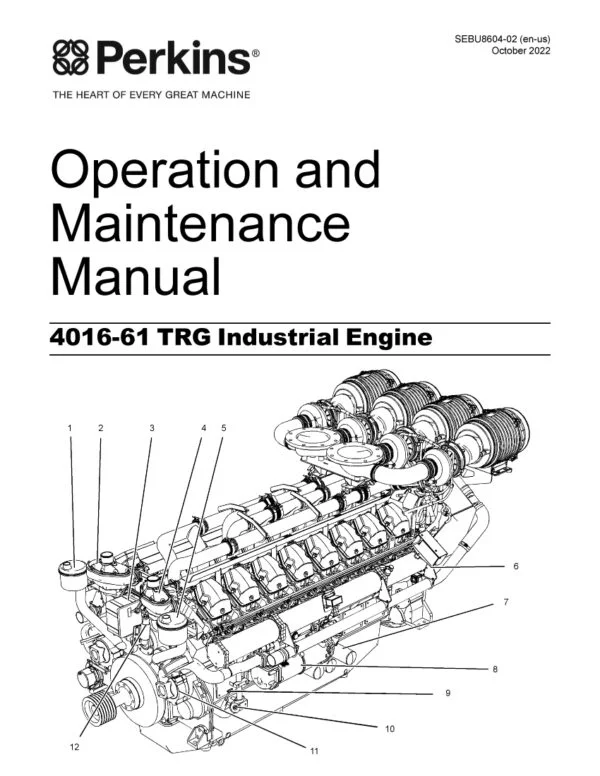

Operation and Maintenance Manual 4016-61 TRG Perkins Engine

$0.00

Official Perkins 4000 Series (4006, 4008, 4012, 4016 Diesel & TRS/TESI Gas) Heavy Power Generation Engine Workshop & Maintenance Manual PDF with individual cylinder head torque specs & valve lash.

Description

Instant Free Workshop Manual Download
Format: Complete PDF Manual | 100% Free Direct Access | Zero Cart or Checkout Required


⬇ Download PDF Now (Free)

ADVERTISEMENT


(adsbygoogle = window.adsbygoogle || []).push({});

The Operation and Maintenance Manual for the 4016-61 TRG Perkins Engine provides a detailed description of the engine, including its specifications and features. The manual includes step-by-step instructions for operating and maintaining the engine, with diagrams and illustrations to help guide you through the process. Whether you’re a mechanic, technician, or owner-operator, this manual is an essential resource for ensuring the proper operation and maintenance of your Perkins engine.

The Perkins 4000 Series (4006-23, 4008-30, 4012-46 & 4016-61 Diesel and TRS / TESI Spark-Ignited Gas Engines) represents Perkins’ flagship high-horsepower prime and standby power generation engine family, spanning 23.0 liters to 61.1 liters (750 kVA to 2,500 kVA). Featuring individual 4-valve cast-iron cylinder heads, wet replaceable cylinder liners, and Heinzmann / Woodward electronic governing, this official manual provides complete overhaul, valve clearance, and torque specifications.

Advertisement

1. Perkins 4000 Series (4006 / 4008 / 4012 / 4016) Technical & Torque Specifications

Engineering ParameterPerkins 4000 Series Factory Specification
Engine Configurations CoveredInline 6 (4006-23L), Inline 8 (4008-30.6L), 60° V12 (4012-45.8L), 60° V16 (4016-61.1L)
Common Bore x Stroke160.0 mm Bore x 190.0 mm Stroke (6.30 in. x 7.48 in.) — 3.82 Liters per Cylinder
Individual Cylinder Head Stud TorqueStage 1: 100 Nm • Stage 2: 200 Nm • Stage 3: 440 Nm (325 ft-lbs) lubricated with Molycote paste
Connecting Rod Big-End Bolt Torque4-Bolt Conrod: 160 Nm (118 ft-lbs) / 2-Bolt Serrated Conrod: 375 Nm (277 ft-lbs)
Main Bearing Cap Stud TorqueVertical Main Studs: 570 Nm (420 ft-lbs) • Side Cross-Bolts: 265 Nm (195 ft-lbs)
Valve Lash Clearance (Cold)Intake Valves: 0.40 mm (0.016 in.) Cold • Exhaust Valves: 0.40 mm (0.016 in.) Cold (Check bridge balance first)
Cylinder Liner Standout / Protrusion0.05 to 0.10 mm (0.002 to 0.004 in.) above cylinder block top deck
